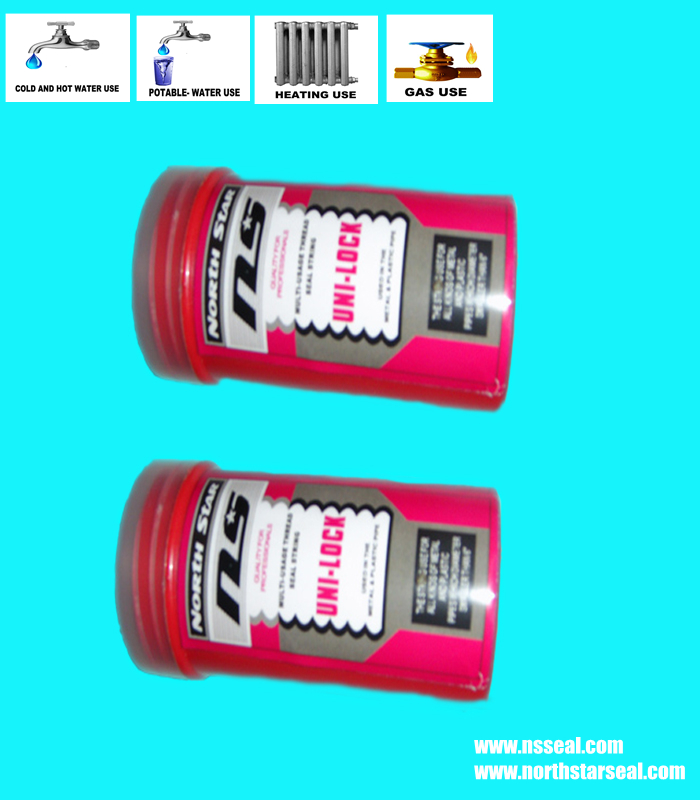

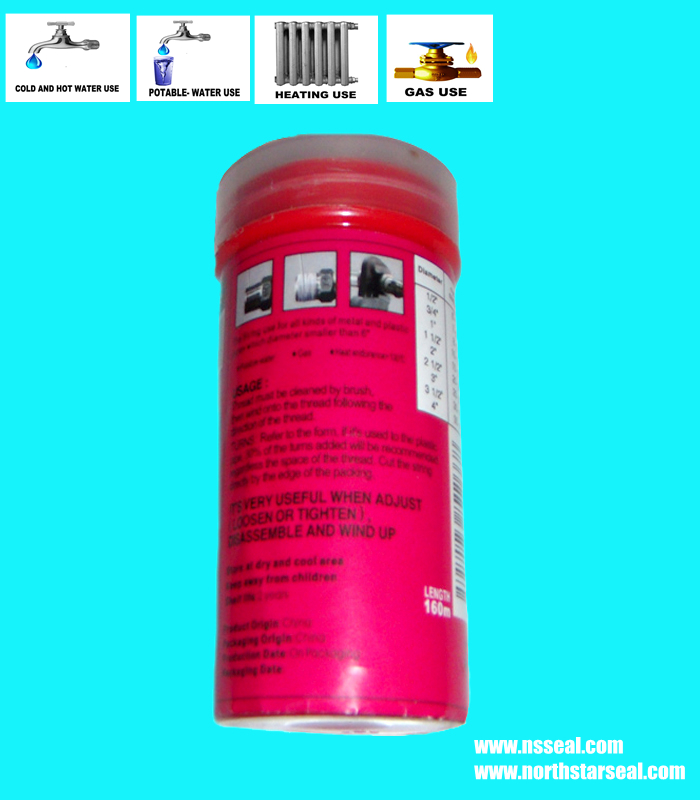

Thread seal cord 160m
Bottle Type: Straight Plastic box
Length: 80m –160m
Composition: Polyamide thread with inert proprietary paste
Appearance : White color, coated wet cord
Packing : 25 or 50 bottles / inner box , 100 bottles / Carton
Delivery time : 30days
Payment Term : T/T and L/C
Composition: Polyamide thread with inert proprietary paste
Appearance : White color, coated wet cord
Application :
Use for Gas ,LPG ,Natural gas pipelines ,valve installing. Industrial ,Public and house ‘pipeline system
( cold water ,hot water ,heating ,potable –water) . Industrial production (pump , valve , pipe joints etc)
Production Features
1.High strength , reliability Anti-loosen, sealing security
2.High Temperature resistance ,High Pressure resistance
3.Easy to Assemble & disassemble
Usage:
- Thread must be cleaned by brush , then wind onto the thread following the direct of the thread
- Turns: Refer to the form , if it’s used to the plastic pipe ,30% of the turns added will be recommended regardless the space of the thread Cut the string direct by the edge of the packing
- It’s very useful when adjust loosen or tighten disassemble and wind up
| Pipe Diameter | Number of turns ( wraps) | |
| Metal | Plastics | |
| 1/2〞 | 6 -8 | 12-15 |
| 3/4〞 | 7-9 | 15-25 |
| 1〞 | 8-12 | 20-30 |
| 1/2〞 | 10-15 | 25-35 |
| 2〞 | 15-25 | |
| 2 1/2〞 | 20-30 | |
| 3〞 | 25-35 | |
| 3 1/2〞 | 30-40 | |
| 4〞 | 35-45 | |
Store
Stored in cool and dry ,keep way from children ,shelf life 2 years
