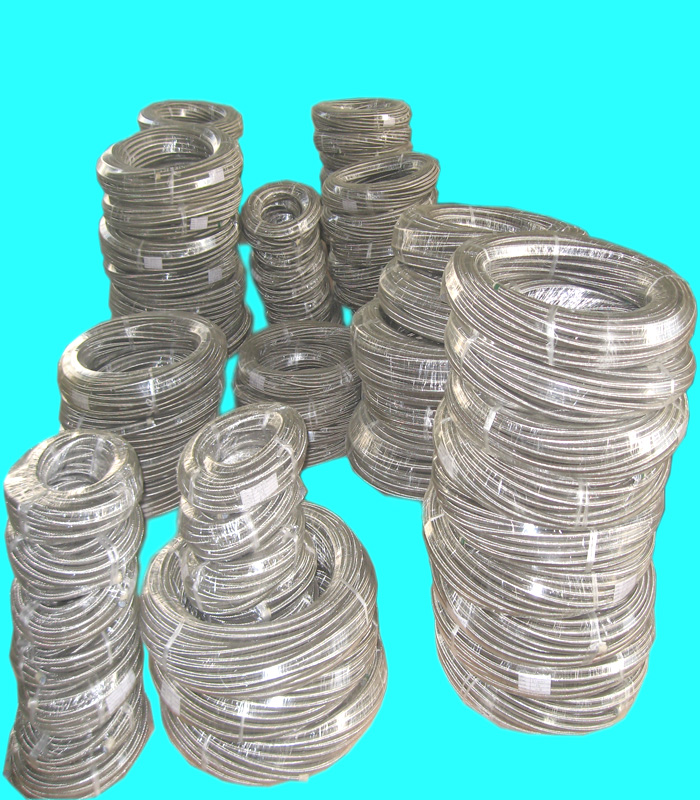

PTFE S.S Braided hose
PTFE SS Braided Hose
Carton packing or as your requirement
Delivery : 25days
Payment Terms : T/T ,L/C
PTFE SS BRAIDED HOSE
1.Products Features
The hose is made of stainless steel wire braided , with the couplings in both end .Excellent High pressure resistance , can be use in both of high
and low temperature It ‘s anti-corrosive ,Non- sticky and will be longtime shelf life.
Inlayer: The hose is made of PTFE. Excellent high and low temperature resistance ,anti-corrosive,non-sticky , folding resistance
and smaller bending radius
Outer layer : Use SUS304 Stainless steel wire braided to net type, enhancing the hose hardness ,high pressure resistance .
can be install all the kinds of quick couplings .
Connect: Can be flange connecting , union connecting , Thread connect ,Quick coupling connecting ,also Directly connect with pipe
fitting and fixed by pipe strap and metal wire.
Temperature: sustaining resistance rang from -50℃-+210℃,Instant resistance -70℃ and 260℃.
2.Appliction
The Hydraulic hose ,pneumatic hose , steam hose of the industries of rubber ,plastic ,clothing ,Automobile, machine tools ,shipbuilding ,
electromechanical ,papermaking .it ‘s will be good performance while transportingThe hot &cold alternate liquid , gas and high corrosive medium
compare to other hose, also have a longtime Shelf life.
3.Main Specification and technical data
| Item NO | Inch | ID(mm) | OD(mm) | Wall-thickness (mm) | working pressure(kg/cm2) | Min bust pressure(kg/cm2) | Min bend radiusmm( +/-3mm) | Weight(g/m) |
| Ns-A10 | 1/8 | 2.85–3.25 | 5.45–6.15 | 0.8–1 | 256 | 625 | 70 | 70 |
| Ns-A20 | 1/4 | 5.95–6.55 | 8.45–9.25 | 0.8–1 | 232 | 552 | 81 | 110 |
| Ns-A25 | 5/16 | 7.85–8.45 | 10.55-11.45 | 0.8–1 | 194 | 540 | 131 | 135 |
| Ns-A30 | 3/8 | 9.65–10.35 | 12.25–13.15 | 0.8–1 | 162 | 450 | 182 | 165 |
| Ns-A40 | 1/2 | 12.55–13.25 | 15.85–17.25 | 1–1.5 | 139 | 425 | 211 | 230 |
| Ns-A50 | 5/8 | 15.75–16.35 | 18.65–20.25 | 1–1.5 | 101 | 385 | 252 | 276 |
| Ns-A60 | 3/4 | 18.65–19.25 | 22.15–23.45 | 1–1.5 | 92 | 315 | 323 | 405 |
| Ns-A70 | 7/8 | 21.85–22.35 | 25.85–26.85 | 1.5 | 80 | 240 | 421 | 460 |
| Ns-A100 | 1 | 24.85–25.65 | 28.85–29.85 | 1.5 | 72 | 200 | 485 | 510 |
