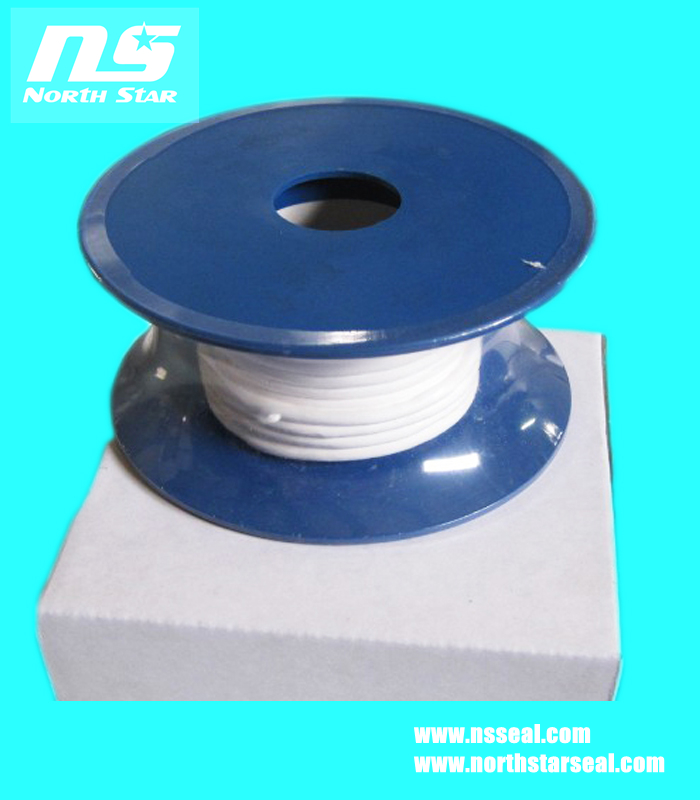

PTFE Expanded Joints Tape
PTFE expanded tape
Packing:10m/roll,15m/roll, 20m/roll ,1roll/shrink,
10rolls/carton,12 cartons/pallet
Delivery time :25days
Payment Terms: T/T or L/C
PTFE Expanded Joints Tape
Specifications
Thickness: 1.5mm to 10mm
Width: 3mm to 100mm
Length: 5m to 50m
Detailed Introduction
Expanded PTFE joint tape is a multi-purpose gasket tape manufactured from 100% expanded PTFE fluorocarbon material, supplied as a continuous low density tape with a self-adhesive backing strip. It is soft and spongy, permitting it to conform easily to all surface irregularities and to compress to a thin ribbon under pressure.
Product Application Fields
Expanded PTFE joint tape is recommended as a gasket tape in steel, glass-lined, PVC and fiberglass pipe flanges, fume ducts, concrete lids, heat exchangers, fiber glass reinforced plastic vessels, pump housing flanges, steam vessel flanges, manhole and manhole covers, ceramic joints, ventilation ducts, hydraulic and pneumatic systems, water supply systems and turbine cases
Technical data
| PH | Temperature | Pressure | Density | Elongation | MatrixTensilestreangth | CreepRelaxation | Sealablity |
| RANGE | ℃ | Limits(Mpa) | (g/cm3) | (%) | (MPa) | (%) | (ml/hr) |
| 0—14 | -260–+260 | 200 | 0.7-0.8 | 20 | 30 | 51 | 0.1 |
