PTFE Corrugated SS Braided Hose With Quick Coupling
PTFE Corrugated SS Braided Hose with Quick coupling
Carton packing or as your requirement
Delivery : 25days
Payment Terms : T/T ,L/C
PTFE Corrugated SS Braided hose
1.Products Features
The PTFE Corrugated hose is made of stainless steel wire braided , with the couplings in both end .Excellent High pressure resistance , can be use
in both of high and low temperature It ‘s anti-corrosive ,Non- sticky and will be longtime shelf life.

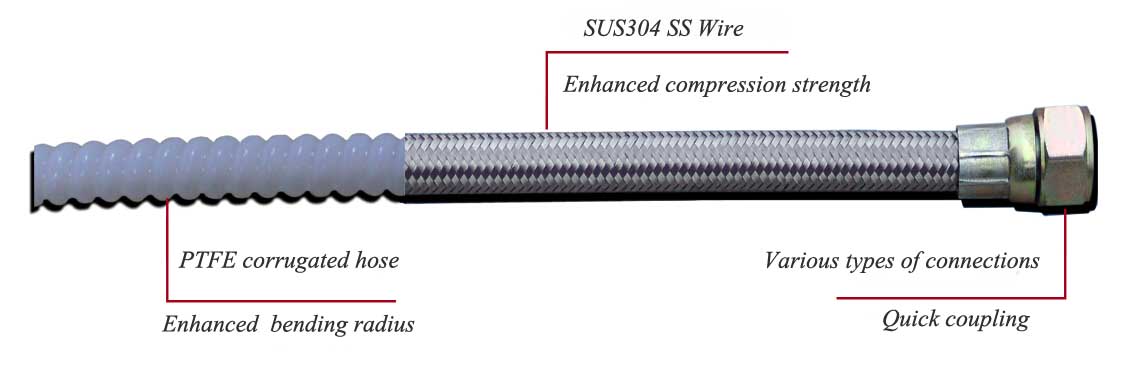

Inlayer: Corrugated hose is made of PTFE. Excellent high and low temperature resistance ,anti-corrosive,non-sticky , folding
resistance and smaller bending radius
Outer layer : Use SUS304 Stainless steel wire braided to net type, enhancing the hose hardness ,high pressure resistance .
can be install all the kinds of quick couplings .
Connect: Can be flange connecting , union connecting , Thread connect ,Quick coupling connecting ,also
Directly connect with pipe fitting and fixed by pipe strap and metal wire.
Temperature: sustaining resistance rang from -50℃-+210℃,Instant resistance -70℃ and 260℃.
2.Application:
The Hydraulic hose ,pneumatic hose , steam hose of the industries of rubber ,plastic ,clothing ,Automobile, machine tools ,shipbuilding ,
electromechanical ,papermaking .it ‘s will be good performance while transportingThe hot &cold alternate liquid , gas and high corrosive medium
compare to other hose, also have a longtime Shelf life.
3.Main specification and technical data
| Items | Inch | ID (mm) | OD(mm) | Wall thickness
(mm) |
Working pressure
(Kg/cm2) |
Min bust pressure
(kg/cm2) |
Min Bend Radius (mm )+/-3mm |
| NS-B20 | 1/4″ | 5.75-6.55 | 9.85-11.55 | 1 | 151 | 450 | 32 |
| NS-B25 | 5/16″ | 7.55-8.55 | 12.85-13.15 | 1 | 126 | 370 | 36 |
| NS-B30 | 3/8″ | 9.14-10.25 | 15.85-16.35 | 1 | 105 | 324 | 59 |
| NS-B40 | 1/2″ | 12.45-13.25 | 18.45-19.35 | 1 | 90 | 270 | 82 |
| NS-B50 | 5/8″ | 15.35-16.25 | 24.85-25.56 | 1.5 | 72 | 255 | 95 |
| NS-B60 | 3/4″ | 18.60-19.85 | 28.25-29.55 | 1.5 | 60 | 231 | 133 |
| NS-B70 | 7/8″ | 21.84-22.86 | 32.25-33.55 | 2 | 52 | 189 | 145 |
| NS-B100 | 1″ | 24.89-26.16 | 35.55-36.85 | 2 | 47 | 144 | 189 |
