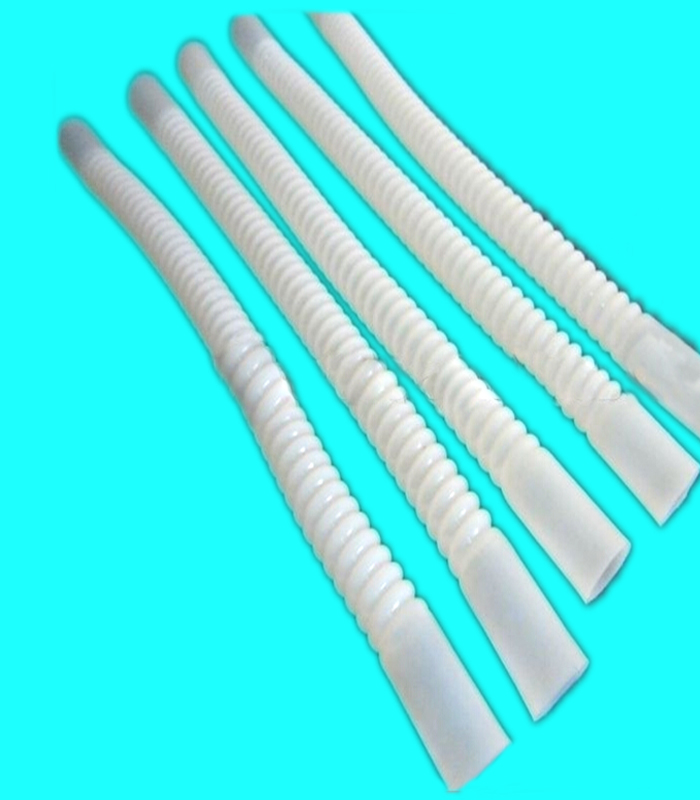

PTFE Corrugated hose
PTFE Corrugated Hose
Color : white
Carton packing or as your requirement
Delivery : 25days
Payment Terms : T/T ,L/C
PTFE Corrugated hose
1.Description
The PTFE Corrugated through the processing method of Special form , Changed the pipeline cannot bend characteristics , can be used to replace the lowmechanical strength of graphite , Ceramics , glass and other pipeline . can be used as a tanker , tank , vessel and reactor ,discharge tube, for dislocation pipe link or use to balance caused by weather of other causes of pipe displacement , change the size or eliminate the high frequency mechanical vibration .On the Special occasions can be use as a pipe reactor and heat exchangers.
2. Main Specification and Technical date
| Spec | Before ShapingID | After shapingID | Wallthickness(mm) | Spec | BeforeShapingID | After shapingID | Wallthickness(mm) |
| DN6 | 6 | 4.5 | 1 | DN40(11/4″) |
38 | 30 | 2 |
| DN8 | 8 | 5 | 1 | DN50(11/2″) | 50 | 40 | 2 |
| DN9(1/4″) | 9 | 6 | 0.5 | DN65(2″) | 63 | 52 | 2 |
| DN10 | 10 | 8 | 1 | DN80 | 80 | 68 | 2 |
| DN13(3/8″) | 13 | 10 | 1 | DN89(3″) | 89 | 75 | 2 |
| DN15 | 15 | 12.5 | 1.5 | DN100 | 100 | 90 | 2 |
| DN16(1/2″) | 16 | 13 | 1.5 | DN125 | 125 | 113 | 2.5 |
| DN20 | 20 | 14 | 1.5 | DN150 | 159 | 140 | 2.6 |
| DN22 | 22 | 16 | 1.5 | DN200 | 219 | 195 | 3.0 |
| DN25(3/4″) | 25 | 20 | 1.5 | Above DN40 adopt coiled | |||
| DN32(1″) | 32 | 25 | 2 | Single Max Length 25meters | |||
