20# 19mm x9m x0.76mm
Brand : SHUSHI

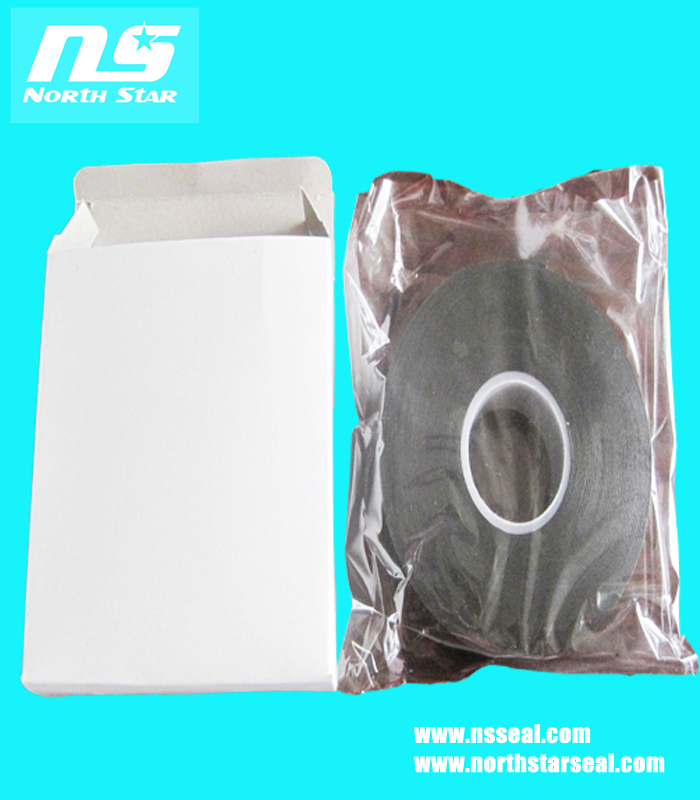

Packing : 1 roll/color inner box ,60rolls / carton
Inner box size:12cm x12cm x2.1cm
Carton size : 38cm x26cm x23cm
Delivery time :35days
Payment term: T/T or L/C

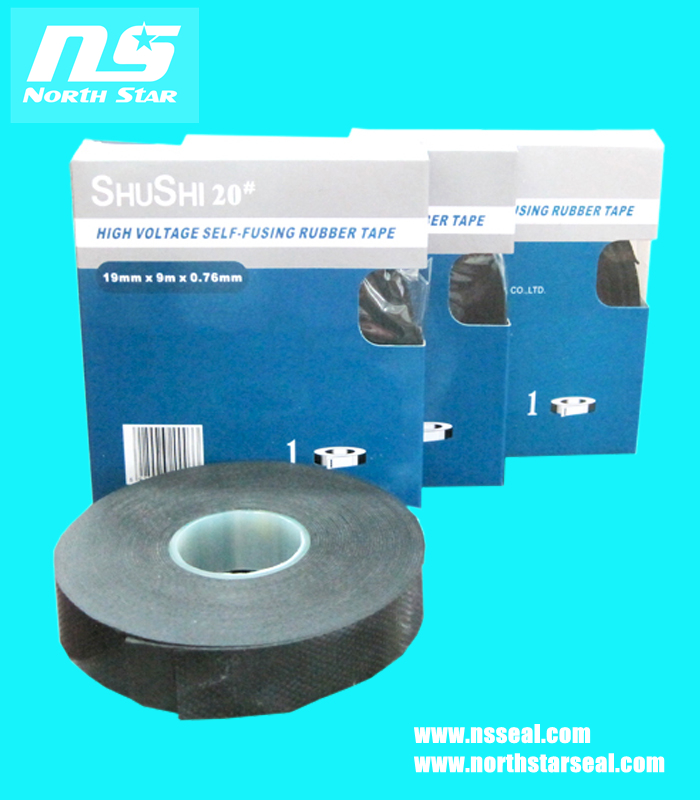

20# High Voltage Self-Fusing Rubber Tape
General Specifications: 0.76mm×19mm×9m
Applications:
Insulation protection of the end or middle connections of wire and cable 10KV (20#) or below on the
Environment temperature between -10 -80℃, insulative sealing for communication cable connection
pipeline protection , remedy and sealing.
Technical data 20#
|
Item No |
Thickness (mm) |
Tensile Strength (MPA) |
Elongation ( %) |
Disruptive Strength (KV/mm) |
|
20# |
0.76 |
1.0 |
500 |
10 |
Products Features
High tensility and elasticity ,high voltage tolerance .excellent air tightness , good weathering and aging resistance.
Usage
Remove separator of the tape , elongated to 200% of its original length enough . Take continuously half overlap circles in three or five layers or reach to the thickness which it is needed , apply another one or two layers PVC electrical tape around the outer layer of EPR self –fusing tape for protection
