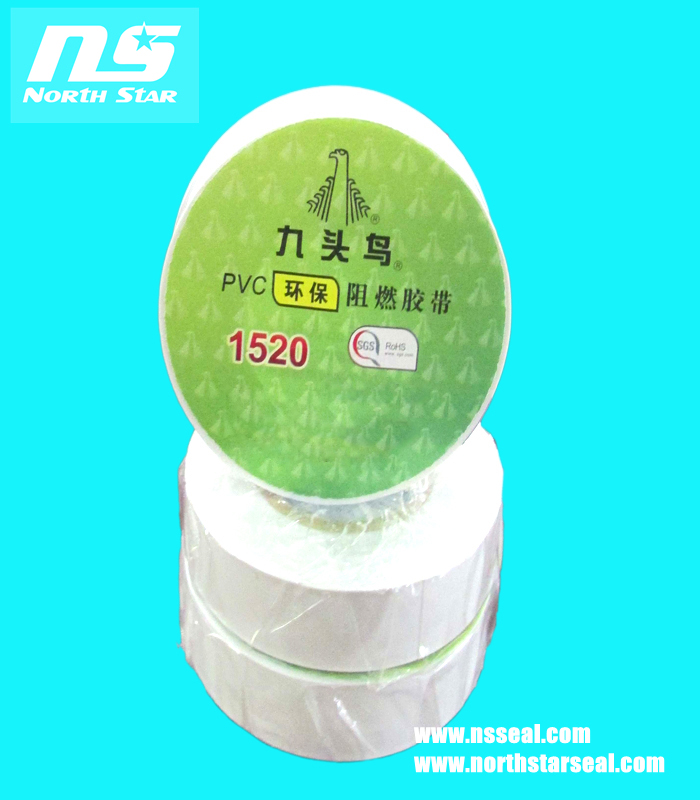

18mm x20m x0.15mm
PVC Electrical Flame Retardant Tape
Brand:SHUSHI

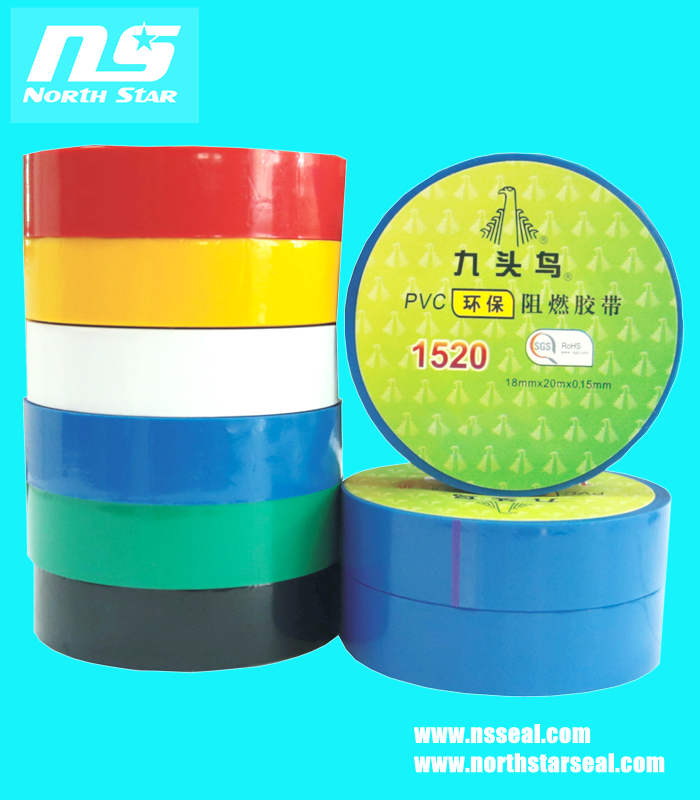

Color : Red , Yellow ,Green ,Blue , white ,Black
Packing :1pcs/color label,10pcs/shrink ,200pcs/ carton
Carton sizes:40cm x32.5cm x20cm
Delivery time :35days
Payment Term: T/T or L/C
PVC Electrical Tape Flame retardant
Normal Specification: 13mm×19mm×10m 0.13mm×19mm×20m
Applications
For insulation of electrical wire and cable connection joint and sheath protection of wire and cable of 600v and on the
Environment temperature between 0℃–80℃,flame retardant.
Products Features:
Shining or matting of surfaces , high mechanical strength, high extensibility ,good aging resistance ,insulation ,adhesivity
and flame retardant
Technical data
|
Thickness (mm) |
Tensile strength (KN/m) |
Elongation (%) |
180°Peel strength (N/m) |
Electrical Strength (KV) |
Flame Retardant Rating |
|
0.13 |
1.8 |
150 |
180 |
4.0 |
Grade Ⅰ/Ⅱ |
|
0.15 |
2.0 |
160 |
180 |
5.0 |
Grade Ⅰ/Ⅱ |
|
0.19 |
2.5 |
200 |
180 |
6.0 |
Grade Ⅰ/Ⅱ |
