10# 25mm x5m x0.76mm
Brand : SHUSHI
Packing : 1 roll/color inner box ,80rolls / carton
Inner box size:9.5cm x9.5cm x2.7cm
Carton size : 40cm x40cm x15.5cm
Delivery time :35days
Payment term: T/T or L/C

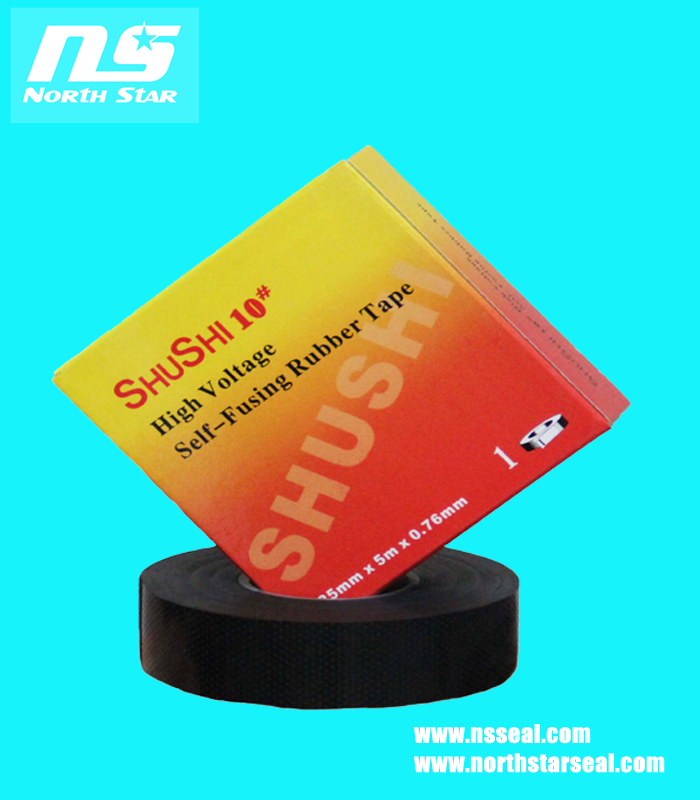

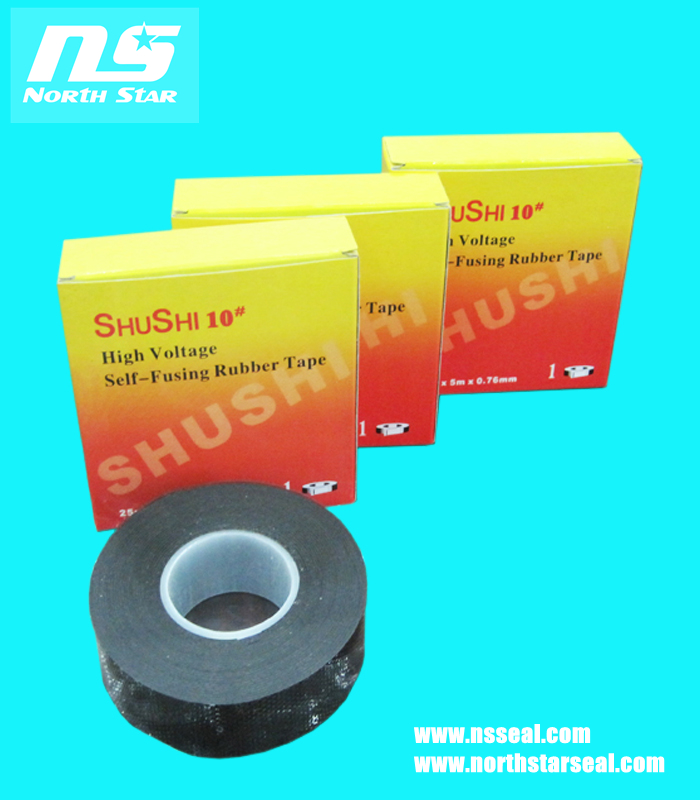

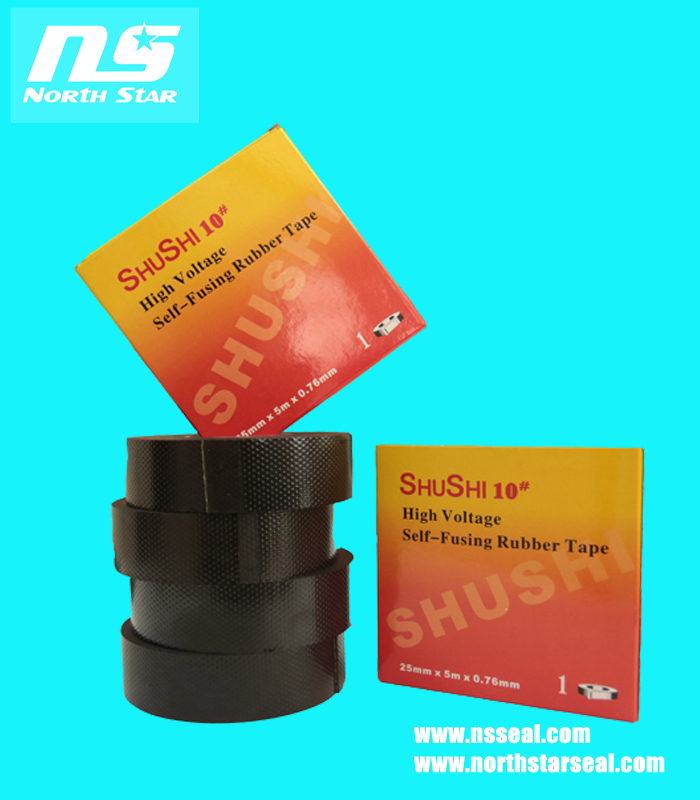

10# High Voltage Self-Fusing Rubber Tape
General Specifications: 0.76mm×19mm×9m
Applications:
Insulation protection of the end or middle connections of wire and cable 1KV (10#) or below on the
Environment temperature between -10 -80℃, insulative sealing for communication cable connection
pipeline protection , remedy and sealing.
Technical data 10#
|
Item No |
Thickness (mm) |
Tensile Strength (MPA) |
Elongation ( %) |
Disruptive Strength (KV/mm) |
|
10# |
0.76 |
0.5 |
300 |
5 |
Products Features
Economical ,universal rubber tape ,good self-fusion ,shedding –free ,effective sealing
Usage
Remove separator of the tape , elongated to 200% of its original length enough . Take continuously half overlap circles in three or five layers or reach to the thickness which it is needed , apply another one or two layers PVC electrical tape around the outer layer of EPR self –fusing tape for protection
