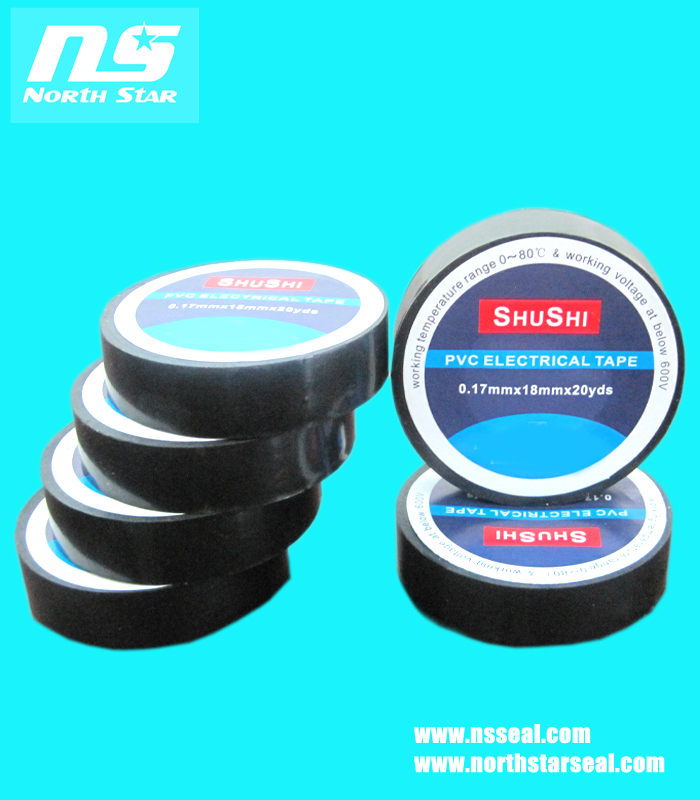

0.17mm x18mm x20yds
PVC Electrical Tape
Brand:SHUSHI
Color : Red , Yellow ,Green ,Blue , white ,Black
Packing :1pcs/color label,10pcs/shrink ,200pcs/ carton
Carton sizes:40.5cm x33cm x20cm
Delivery time :35days
Payment Term: T/T or L/C
PVC Electrical Tape
Normal Specification:0.13mm x19mm x10m 0.17mm x18mm x20yd
Applications:
For insulation of electrical wire and cable connection joint, phase labeling, Sheath protection and industrial colligation of wire and cable under the voltage of 600v and on the environment temperature between 0℃–80℃。It can also be used for bundling .fixation , splicing , remedy ,encapsulation and protection .
Products Features:
Shining or matting of surfaces , soft material ,high elasticity , high mechanical strength, Best adhesivity and electrical insulating property.
Technical data
|
Thickness (mm) |
Tensile strength (KN/m) |
Elongation (%) |
180°Peel strength (N/m) |
Electrical Strength (KV) |
|
0.13 |
1.8 |
150 |
180 |
4.0 |
|
0.15 |
2.0 |
160 |
180 |
5.0 |
|
0.17 |
2.2 |
170 |
150 |
5.5 |
|
0.19 |
2.2 |
180 |
150 |
6.0 |
